SZ40-16 backhoe loader with 0.4m3 rated bucket capacity

FOB Reference Price:Get Latest Price
US $10,000-20,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SZ40-16
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Brand Name:
Chinacoal
Place of Origin:
Shandong, China (Mainland)
Type:
Mini Loader
Moving Type:
Wheel Loader
Dimension(Long * Breadth * High):
7500mm*2100mm*2700mm
Rated Load:
1600kg
Warranty:
1 Year
After-sales Service Provided:
No overseas service provided
Capacity of bucket:
0.4m3
System working pressure:
20mpa
Engine:
4102
Rated power:
60kw
Rated speed:
2200r/min
Max. flux:
63ml/r
SupplyAbility
SupplyAbility:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Ningbo shanghai Shenzhen Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 7 To be negotiated
Product Description


Introduction of SZ40-16 Backhoe Loader With 0.4m3 Rated Bucket Capacity

1). SZ40-16 Backhoe Loader With 0.4m3 Rated Bucket Capacity has an compact structure and logical layout.

2). Good appearance and design of components embody hommization adequately.
3). The performance has achieved advanced level in China.
4). The imported components is used as the transmission system and the hydraulic system uses domestic famous brand.
5). The panoramic cabin is of broad vision.
6). The driving axle with differential lock and wet disc brake significantly improve the traction and safety performance.
7). The service brake and parking brake adopts maintainable-free.
8). The cover with open-back design improves maintainability.
9). It can be fixed with many accessories according to requirements.

Parameter



Main Parameter of SZ40-16 Backhoe Loader With 0.4m3 Rated Bucket Capacity

Operating weight

6500kg

Capacity of bucket

0.4m3

System working pressure

20mpa

Engine

4102

Rated power

60kw

Rated speed

2200r/min

Max. excavating height

6000mm

Max. excavating depth

3200mm

Max. excavating radius

5550mm

Max. excavating Width

720mm









Dumping height

2850mm

Dumping reach

1000mm

Lifting time of movable arm

3.8s

Descending time of movable arm

3.4s

Dumping time

3s

Max. flux

63ml/r

Max. Tractive force

30kn

Grade ability

35°

Ground clearance

220mm

Wheel base

2800mm

Tread

1550mm

Drive type

4WD

Tyre

825-16

 Size(L*W*H)

7500mm*2100mm*2700mm

Photos

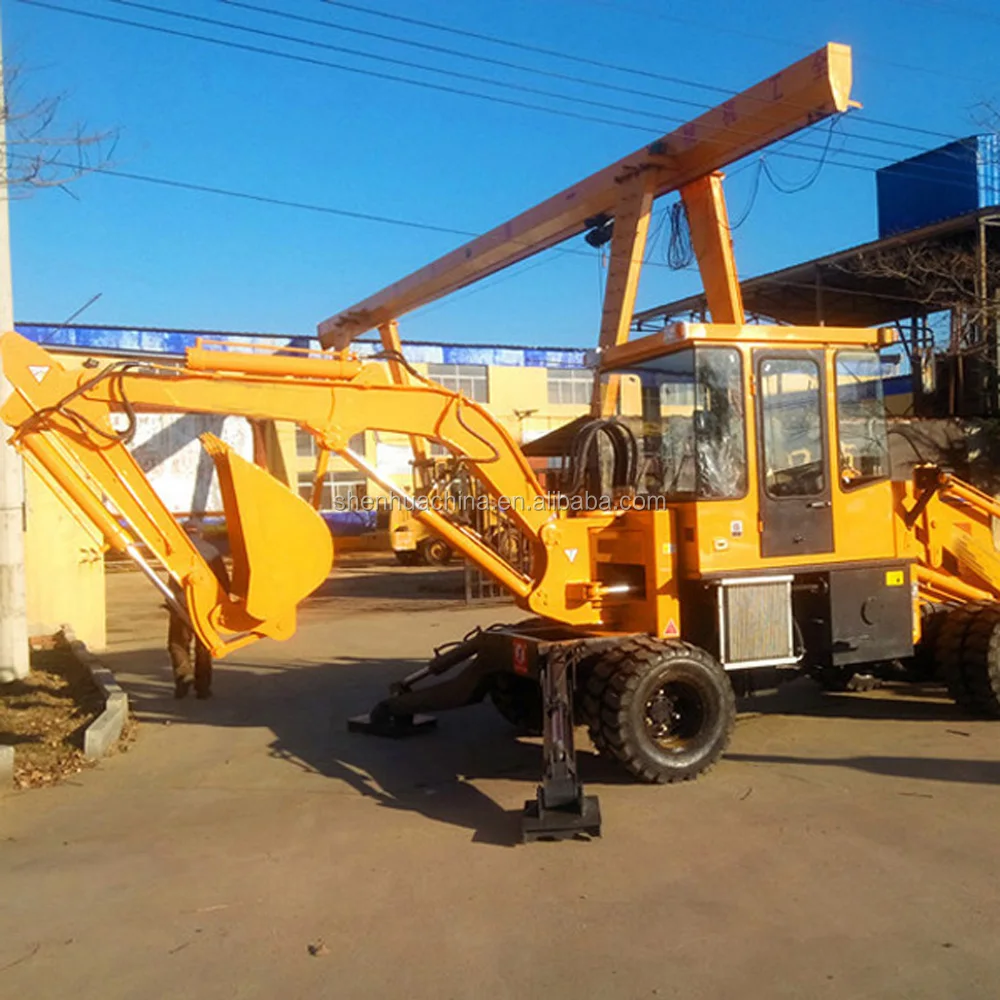

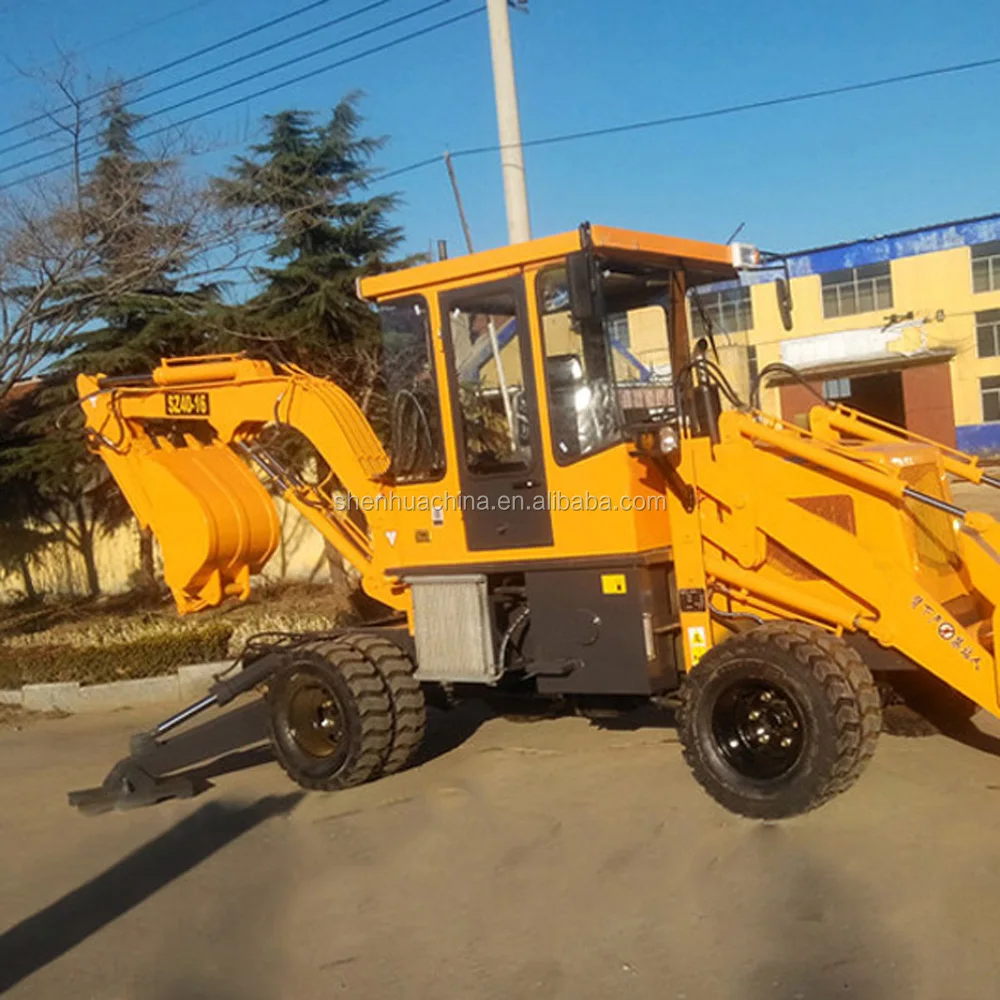

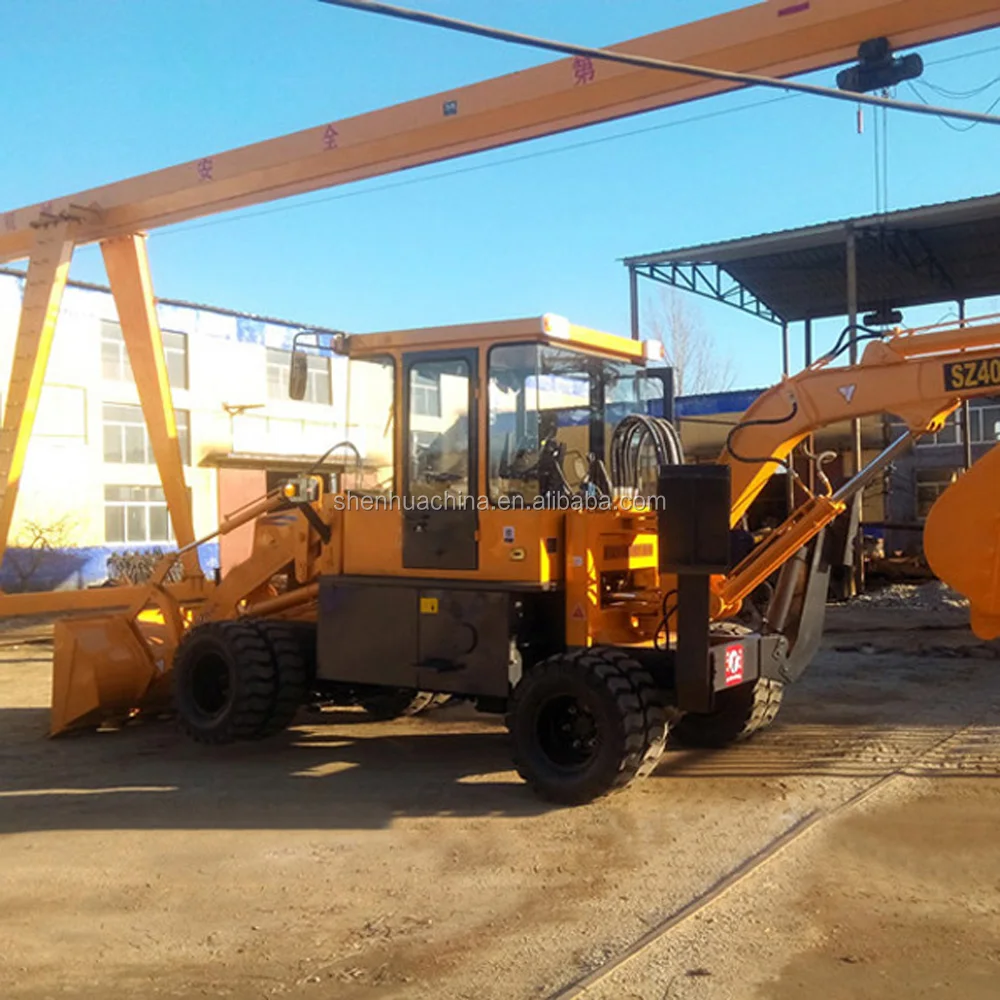

Figure Images of SZ40-16 Backhoe Loader With 0.4m3 Rated Bucket Capacity

5.Small Backhoe (1).jpg5.Small Backhoe (2).jpg5.Small Backhoe (3).jpg5.Small Backhoe (4).jpg5.Small Backhoe (5).jpg5.Small Backhoe (6).jpg
